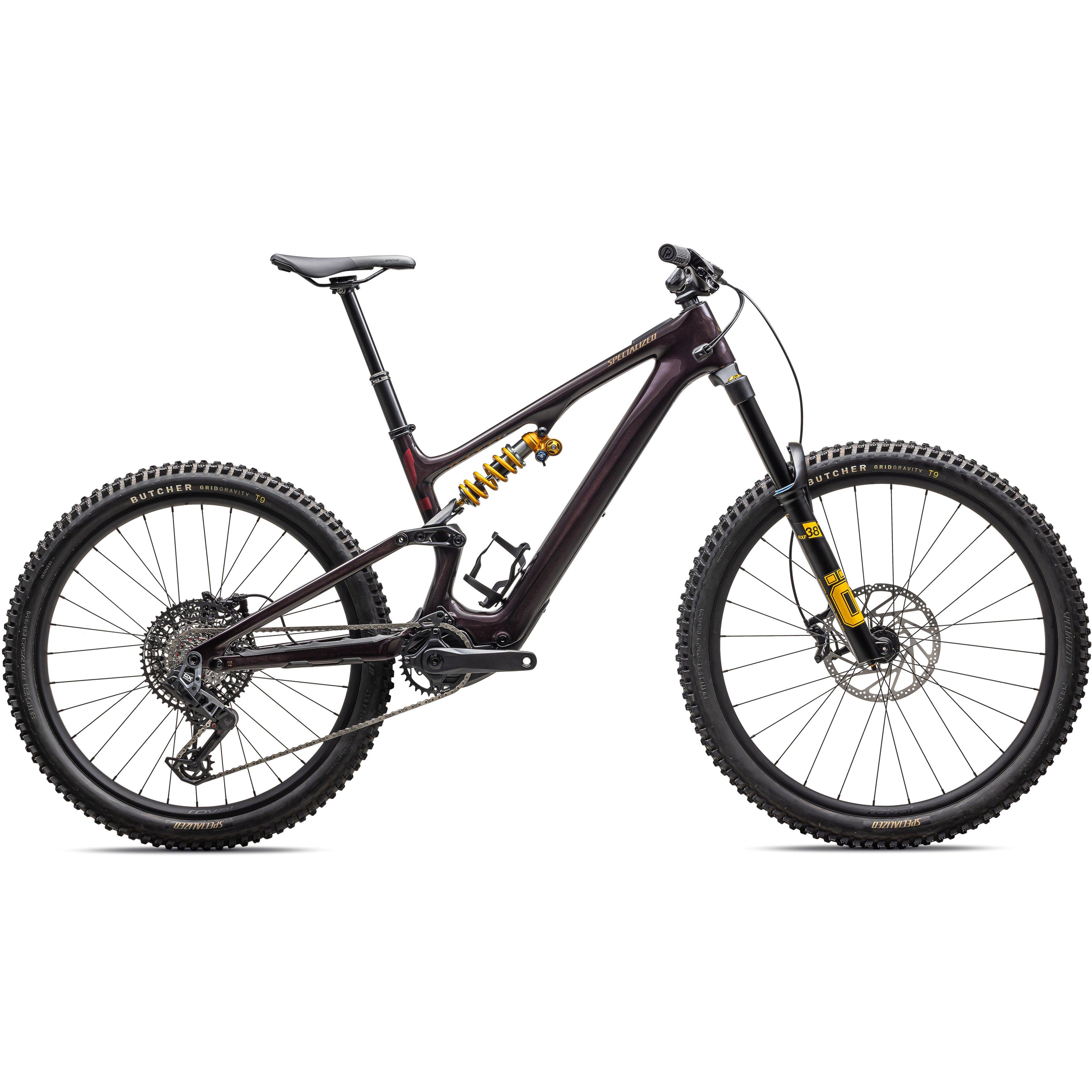

Specialized Levo SL 2 Ohlins Coil Electric Mountain Bike

Experience the ultimate ride with the Specialized Levo SL Electric Mountain Full Suspension Bike. Unmatched lightweight design with supernatural amplification. Superior control, agility, and power with Specialized SL 1.2 motor. Personalise your ride with connected technology and enjoy top-tier components like Ohlins suspension and TRP brakes. Get the best out of mountain biking with the Levo SL.

---

## Key Features

* Traverse Alloy Wheels - The strongest, best riding alloy wheelset on the mountain
* Ohlins TTX22 Coil - Handles World Cup Downhill and still boasts pedaling efficiency
* Ohlins RXF38 Fork - Optimal traction and control for trail and enduro, and improved sensitivity
* TRP DHR EVO Brakes - Unparalleled modulation and heat management with monster stopping power
* SRAM GX Eagle Transmission - Wide range and high-performance wireless shifting
* Bike Yoke Revive Max Dropper - Extremely short stack height, short overall length, very smooth

---

## Specifications

### Frameset

* Frame: Levo SL carbon Frame, Fact 11m carbon, alloy shock extension, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29 wheels.
* Fork: Ohlins RXF 38, 160mm travel, 29
* Rear Shock: Ohlins TTX Coil shock, S2: 411lb, S3: 457lb, S4: 502lb, S5: 548lb, S6: 605lb

### Wheels

* Rims: (f) Roval Traverse Alloy 29, DT Swiss 350, 15x110mm, 28h (r) Roval Traverse Alloy 27.5, DT Swiss 350 XD freehub body, 12x148mm, 28h
* Tyres: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 2.3

### Drivetrain

* Crankset: SRAM GX Eagle Crankset, 32T ring, Integrated Guard, 55mm Chainline, 165mmm
* Shifters: SRAM AXS POD Controller
* Rear Derailleur: SRAM GX Eagle Transmission Derailleur
* Chain: SRAM GX Eagle Transmission Flattop Chain
* Cassette: SRAM GX Eagle Transmission Cassette, 12spd, 10-52t

### Components

* Handlebar: Raceface Turbine Alloy, 35mm dia, S1/S2: 20mm rise, 800mm width, S3-S6: 40mm rise, 800mm width
* Stem: RaceFace Aeffect R 35mm bore, 40mm length
* Grips: Deity Grips
* Brakes: Tektro DHR Evo brakes, w/220mm rotor
* Saddle: Specialized Bridge Mimic, hollow cromo rail
* Seatpost: Bike Yoke, Revive Max, 34.9, S1: 125mm, S2: 160mm, S3-S4: 185mm, S5-S6: 213mm
* Extras: SWAT CC steerer tube integrated tool with chain tool and link

### E-System

* Motor: Specialized 1.2 SL Custom RX Trail Tuned Motor, 50Nm power, 320W power
* Battery: Specialized SL1-320, fully integrated, 320Wh
* Controller: Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote

---

## Turbo Levo Sizing

| | S1 | S2 | S3 | S4 | S5 | S6 |
| ----- | ----- | ----- | ----- | ----- | ----- |
| Rider Height (cm) | 150 - 160 | 157 - 173 | 165 - 180 | 173 - 188 | 178 - 193 | 188 - 203 |
