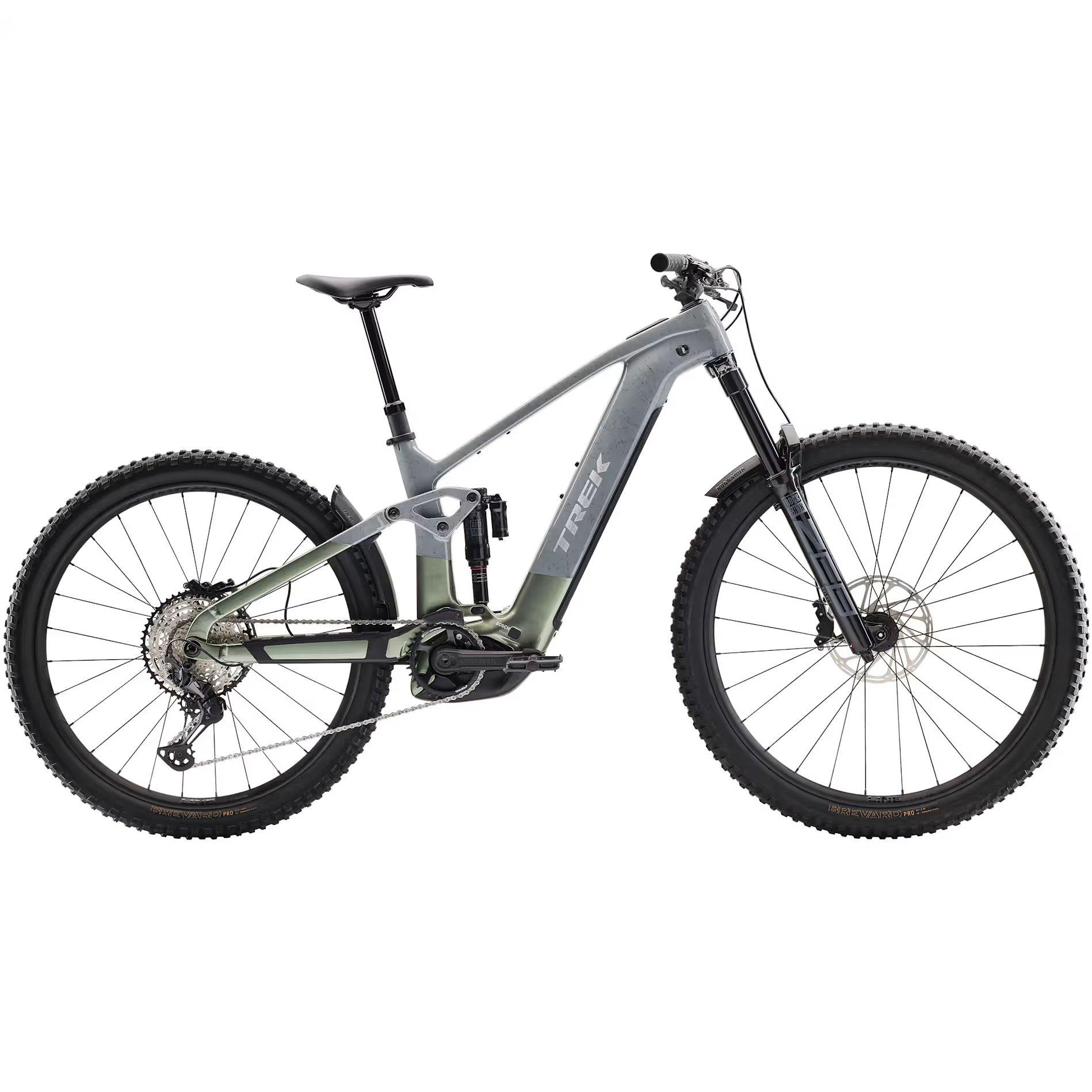

Trek Rail+ 9.7 Gen 5 2025 Electric Mountain Bike

The Rail+ 9.7 is a carbon enduro e-MTB built for your biggest adventures. With 160 mm front and rear travel, the Rail+ is ready to rip through the rough, while a powerful Bosch Performance CX drive system makes long climbs and fast laps a breeze. It packs in adjustable geometry that lets you customise your bike for how and where you ride, a massive battery that keeps you going lap after lap, and a Shimano drivetrain that delivers quick shifts you can count on for the long miles.

---

## Key Features

* The Rail+ delivers adventure with plenty of travel and power for getting after epic rides that take you peak to peak or chasing endless enduro laps
* The powerful Bosch Performance CX system goes full gas up steep climbs and keeps you cool for the descents
* You can tweak your geometry and suspension leverage rate for how you ride, and add in adjustable angle headset cups (sold separately) for even more adjustability
* Want even more boost? With the Bosch e-Bike Flow app, you can increase torque to 100 Nm and peak power up to 750 W.
* The massive 800 Wh RIB 2.0 battery supports you for big miles and can be easily removed for travel or storage, and is compatible with PowerMore for even bigger rides

---

## Specifications

### Frameset

* Frame: OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH Boost148, 12 mm thru axle, 160 mm travel
* Fork: RockShox ZEB Select, DebonAir spring, Charger RC damper, tapered steerer, 44 mm offset, Boost110, Maxle Stealth, 160 mm travel
* Rear Shock: RockShox Super Deluxe Select RT, 205mm x 65mm

### Wheels

* Rims: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, 127.5 Rearr 29 fron
* Tyres: Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi 2.5

### Drivetrain

* Crankset: E*thirteen E*spec Plus, 160 mm length
* Shifters: Shimano SLX M7100, 12-speed
* Rear Derailleur: Shimano XT M8100, long cage
* Chain: Shimano SLX M7100, 12-speed
* Cassette: Shimano SLX M7100, 10-51T, 12-speed

### Components

* Handlebar: Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
* Stem: Bontrager Elite, 35 mm, 0-degree, 45 mm length
* Grips: Bontrager XR Trail Comp, nylon lock-on
* Brakes: SRAM DB 8 4-piston hydraulic disc
* Saddle: Bontrager Verse P3, chromoly rails
* Seatpost: Bontrager Line Dropper, MaxFlow, internal routing, 34.9 mm
* Extras: Trek 27.5 custom fender

### E-System

* Motor: Bosch Performance Line CX, 25 km/h max assist
* Battery: Bosch PowerTube 800 Wh, smart system
* Controller: Bosch System Controller BRC3100, smart system

---

## Trek Rail Sizing

| | S | M | L | XL |
| ----- | ----- | ----- | ----- |
| Rider Height (cm) | 155 - 165 | 165 - 176 | 177 - 188 | 188 - 195 |
| Inseam (cm) | 74 - 78 | 79 - 83 | 84 - 89 | 89 - 91 |
