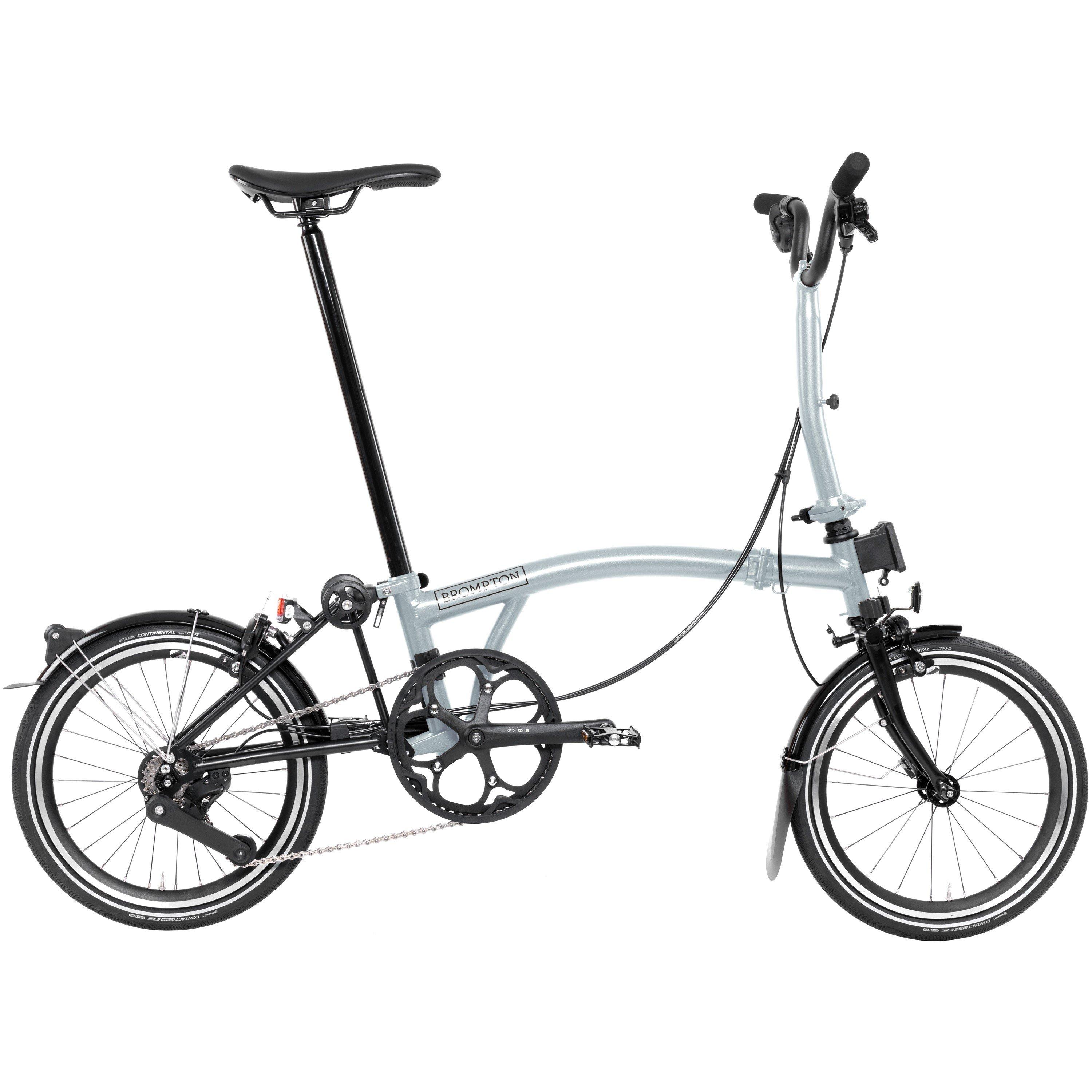

Brompton P Line 4-Speed - Mid Handlebar - Folding Superlight Bike

## About the Brompton P Line – Mid Handlebar

## Performance. The lightweight transformation

Next level frame. Next level componentry. A next level ride: Superlight compact 4-speed gear system fine-tuned for city riding; Titanium and steel frame; and best-in-class componentry.

## Extended Warranty

Brompton offers an extended 7-year frame warranty, 3-year electrical system warranty on Brompton Electric C Line bikes, and a 2-year warranty on all other non-wearing parts. Simply visit the Brompton website to register with your frame number.

---

---

## Key Features

* Weighing 1.55 kg less than the equivalent all-steel model.
* Features titanium rear frame, forks, and all-new suspension block.
* Next-level componentry and enhanced portability features.
* Faster to ride, lighter to carry and easier to move around.
* Mid handlebar for a neutral and relaxed position for average to tall riders, or a more sit-up position for shorter riders.
* All new Superlight Quick Release pedals for unmatched power transfer

---

## Specifications

### Frameset

* Main frame: Heat-treated steel tubing with hand brazing and selected auto-brazed joints
* Rear frame: Superlight Advance rear frame made from Titanium with a replaceable hanger, redesigned suspension block and Advanced 54mm roller wheels.
* Fork: Superlight Titanium fork with a threaded headset

### Wheels

* Rims: Brompton Alloy rims, double-butted spokes
* Hubs: (F) Aluminium hub body with sealed bearings (R) Aluminium hub body with sealed bearings, 4 speed freehub body

### Drivetrain

* All new Superlight Quick Release pedals for unmatched power transfer
* Crank: (6061) forged aluminium crank with 54T chainring and integrated chainguard
* Front Derailleur: N/A
* Rear Derailleur: Patent-pending direct mount 4 speed derailleur
* Shifters: 4 speed trigger shifter
* Chain: Hollow pin Superlight Advance Chain
* Bottom Bracket: Square taper bottom bracket
* Rear Cogs: 11-13-15-18 tooth

### Components

* Handlebar: Triple butted (6061) aluminium handlebar with shot-peened finish
* Headset: Superlight headset
* Grips: Superlight lock-on foam grips
* Stem: N/A
* Brakes: Dual pivot brake calipers
* Seatpost: Chromoly steel tube, centreless ground, chrome plated for hardness, delivered in a standard length.
* Saddle: Brompton Superlight Saddle
* Touch Points: Aluminium CNC Clamps

---
